Aperçu > Produits> Palette clouant la machine> High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity

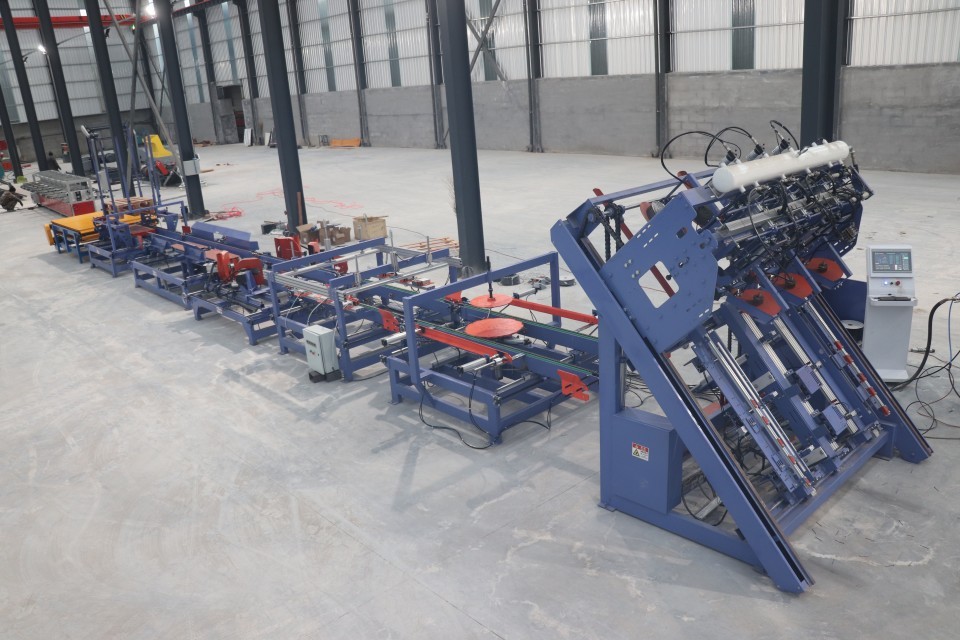

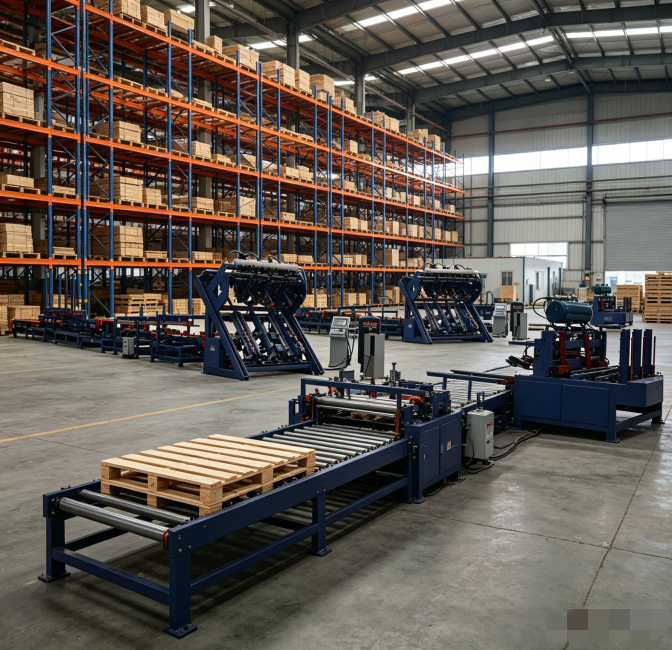

High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity

High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity
High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity
High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity
Informations de base
Lieu d'origine: Province du Shandong, Chine
Nom de marque: SH
Certification: ISO9001, CE
Numéro de modèle: AEPN-1300, SHDL-1300, PQ1300-4, etc.
Document: wood pallet nailing machine...ne.pdf
Quantité de commande min: 1 palette en bois d'ENSEMBLE clouant la machine
Prix: US $4,800 - 21,500 / Set
Détails d'emballage: emballages de cadre de fer ou emballages de luo
Délai de livraison: Dans les 15 jours
Conditions de paiement: T/T ou L/C à vue, Western Union
Capacité d'approvisionnement: 1000 ensembles par an
meilleur prix Contactez
Détail Infomation
Nom: Ligne de production automatique de palettes Capacité: 50-80 palette/heure
Longueur de palette en bois: 700-1300mm Largeur de palette en bois: 800-1300 mm
Mode de travail: Alimentation et empilement automatiques type d'ongle: clous de bobine
Service après-vente: support technique vidéo, détection intelligente à distance gratuite Garantie: 1 an
Peinture de machine: Pulvérisation de plastique pour éviter la rouille Mots clés: Machine à clouer les palettes en bois, production de palettes aux normes européennes

Description de produit

High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity

High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity 0

Short Description (Meta Description)

Maximize your facility's throughput with our Automatic EPAL Wood Pallet Production Line. Capable of producing 50-80 pallets per hour, this fully integrated system handles pallet sizes from 700mm to 1300mm. Features advanced block nailing, automated branding, and precision chamfering to meet strict European standards.

Technical Features & Line Configuration

Our production line is an all-in-one solution designed for high-volume manufacturing of standard EPAL and custom wooden pallets.

Core Components & Workflow:

  1. Automatic Pallet Block Nailing Machine: High-precision placement and fastening of support blocks.

  2. Automatic Pallet Nailing Machine: Industrial-grade nailing for top and bottom decks.

  3. Pallet Rotary & Turning Machines: 180° and 90° flipping for dual-sided processing.

  4. Pallet Branding Machine: Automatic heat stamping of EPAL/EUR logos and IPPC markings.

  5. Pallet Corner Cutting & Chamfer Machine: Precision trimming for safety and easy handling.

  6. Pallet Palletizer & Conveyor System: Automated stacking and transport to minimize manual labor.

Specifications:

  • Production Capacity: 50 - 80 pallets / hour.

  • Pallet Length: 700mm – 1300mm.

  • Pallet Width: 800mm – 1300mm.

  • Compliance: Designed for EPAL European Standard production.

1. Euro Wood Pallet Pier Automatic Connecting Nailing Machine

Model SLDJ-1300-3
Block width 60-150mm
Board Length 600-1300mm
Nail gun CN70*3Stanley BOSTITCH Stitch CN70*3
Nailing method 1 nail, 2 nails, 3 nails, 4 nails, 5 nails
Air pressure 0.8MPA
Nail gun speed 4-8 s/time
Motor power 1.5KW Servomotor
Voltage 220V(Customized)
Operating mode Touch screen
Production mode Manual discharge/automatic pin pier

High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity 1

2,Automatic European pallet nailing machine

Model AEPN-1300
Wood pallet length 700-1300mm
Wood pallet width 800-1300mm
Working mode Automatic feeding and stacking
Operation mode Touch screen
Operational mode Pneumatic operation
Voltage and power 2kw Servo motor
Air pressure 0.8MPA
Nail gun speed 7 times /second.
Production effciency 1-2pcs /min
Number of nail guns 6P CN70,CN58
Weight 2000kg

High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity 2



3.Wood pallet branding machine



Model LY-4
Processing Size 800-1300mm
Branding material Copper/die steel
Air pressure 0.8MPA
Branding speed 4-8 s/time with pallet machine speed
Motor power 0.75KW*2
Number of branding 1-6 pcs
Control mod Pallet machine production line integrated supporting



High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity 3

4. Pallet angle cutting machine



Model PQ1300-4
Processing size 800-1300mm
Circular saw blade diameter 300mm
Motor power 2.2KW*4
Working mode Automatic feed,Automatic Angle cutting
Weight 350kg

High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity 4





5. Wooden pallet palletizer



Model MD-1300Z
Processing size 800-1300mm
Lift control Hydraulic
Palletizing speed 4-8 s/time
Model power 5.2KW

High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity 5

Key Benefits for Buyers

  • Labor Reduction: Fully automated cycle from raw wood to stacked pallets requires minimal operators.

  • Versatility: Adjustable settings to switch between different pallet sizes (700-1300mm).

  • Consistent Quality: Machine-driven nailing and branding ensure every pallet meets export regulations.

  • Durable Engineering: Heavy-duty components designed for 24/7 industrial operation.

❓ Common Technical Questions (FAQs)

Q1: How many operators are required to run this 50-80 pallet/hour line?

A: Thanks to the fully automatic integration of the nailing, branding, and stacking units, this line typically requires only 2 to 3 operators to oversee the PLC console and manage raw material loading.



Q2: Does this production line comply with EPAL and IPPC standards?

A: Yes. The line includes an automatic branding machine specifically designed for heat-stamping EPAL/EUR logos and the IPPC (ISPM 15) markings, ensuring your pallets are ready for international export.



Q3: Can the machine handle different pallet sizes without long downtime?

A: Absolutely. The line is adjustable for lengths and widths between 700mm and 1300mm. The quick-change settings allow you to switch production runs with minimal mechanical adjustment.



Q4: What type of nails and wood can be used?

A: The automatic nailing machine is compatible with standard coil nails. It is designed to work with softwoods and hardwoods commonly used in European pallet manufacturing, such as pine, spruce, or poplar.
